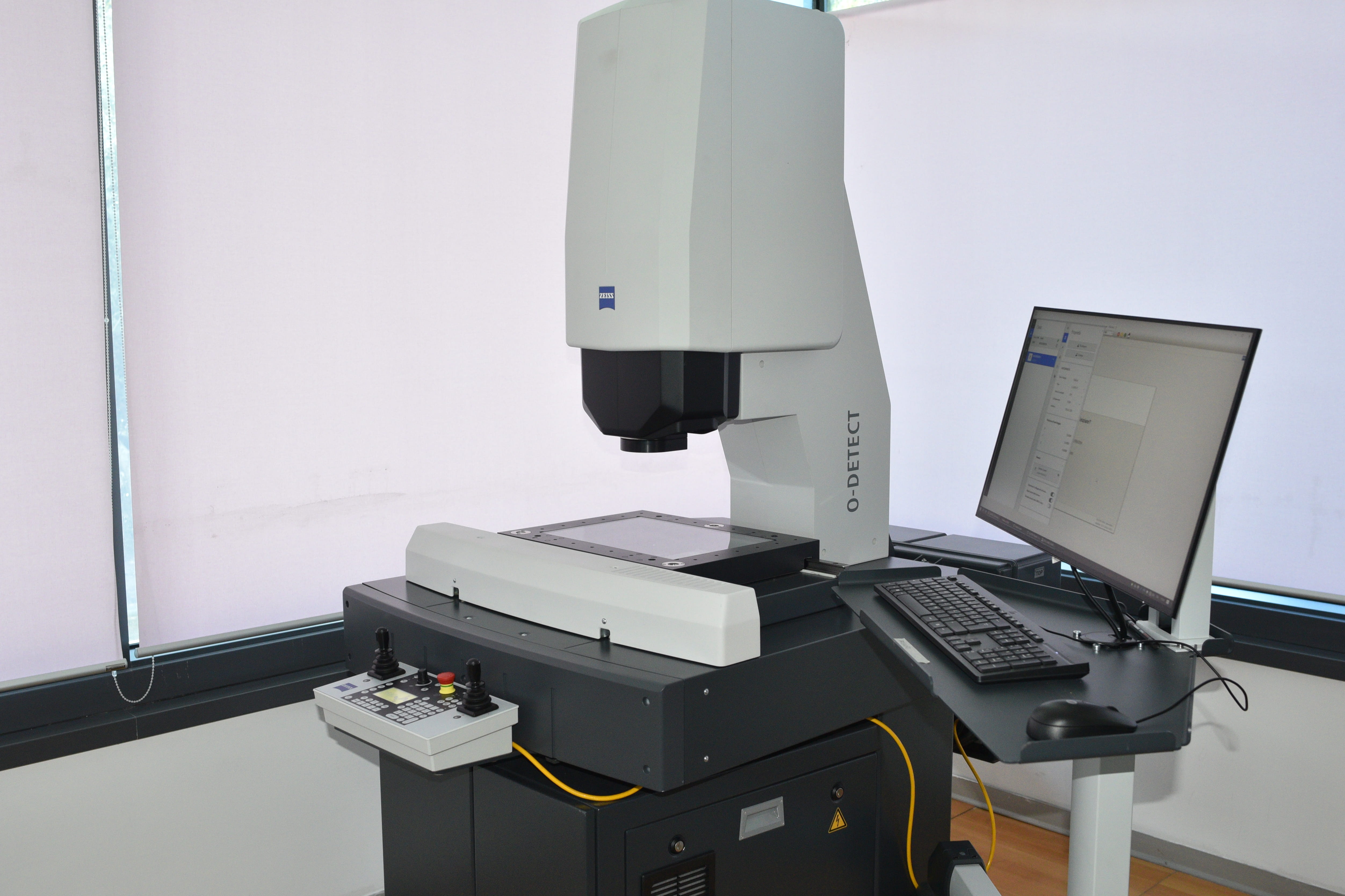

ZEISS O-DETECT
O-DETECT is an optical measuring machine designed to precisely inspect small and delicate components, even when contact measurement is not the most suitable solution.
.jpg)
Noncontact optical measurement for small and delicate components
ZEISS O-DETECT is an optical measuring machine designed to capture and inspect component features without coming into contact with the surface. This measurement method makes it particularly well-suited for thin, delicate, small, or components that are sensitive to traditional probing.
The built-in panoramic camera makes it easier to locate and position the component, while the 5-megapixel camera and lens allow for high-resolution imaging. The various lighting options allow you to adapt the imaging process to the characteristics of the component and its surface.
The system processes the captured images and returns 2D and 3D dimensional data that can be used for component inspection and subsequent reporting.
Thanks to its non-contact optical technology, O-DETECT enables dimensional inspections of small-scale geometries and components that might be difficult to measure with contact-based systems, while maintaining a fast and non-invasive approach.
Electronic Components
Noncontact measurement of small components and precision geometries, thanks to high-resolution optical imaging.
Medical Components
Inspection of components that require accurate measurements without subjecting them to physical contact.
Injection-molded parts
Dimensional inspection of plastic components and complex geometries, with lighting that can be configured based on surface characteristics.
Sheet metal and stamped parts
Inspection of profiles, holes, distances, and other geometric features using noncontact optical measurement.
Optics and delicate components
Measurement of surfaces and components sensitive to contact, using non-contact sensing.
Components with fine details
Capture of fine geometric features thanks to high image quality and lighting that can be adapted to different surfaces.
Related Systems
%20(1).jpg)

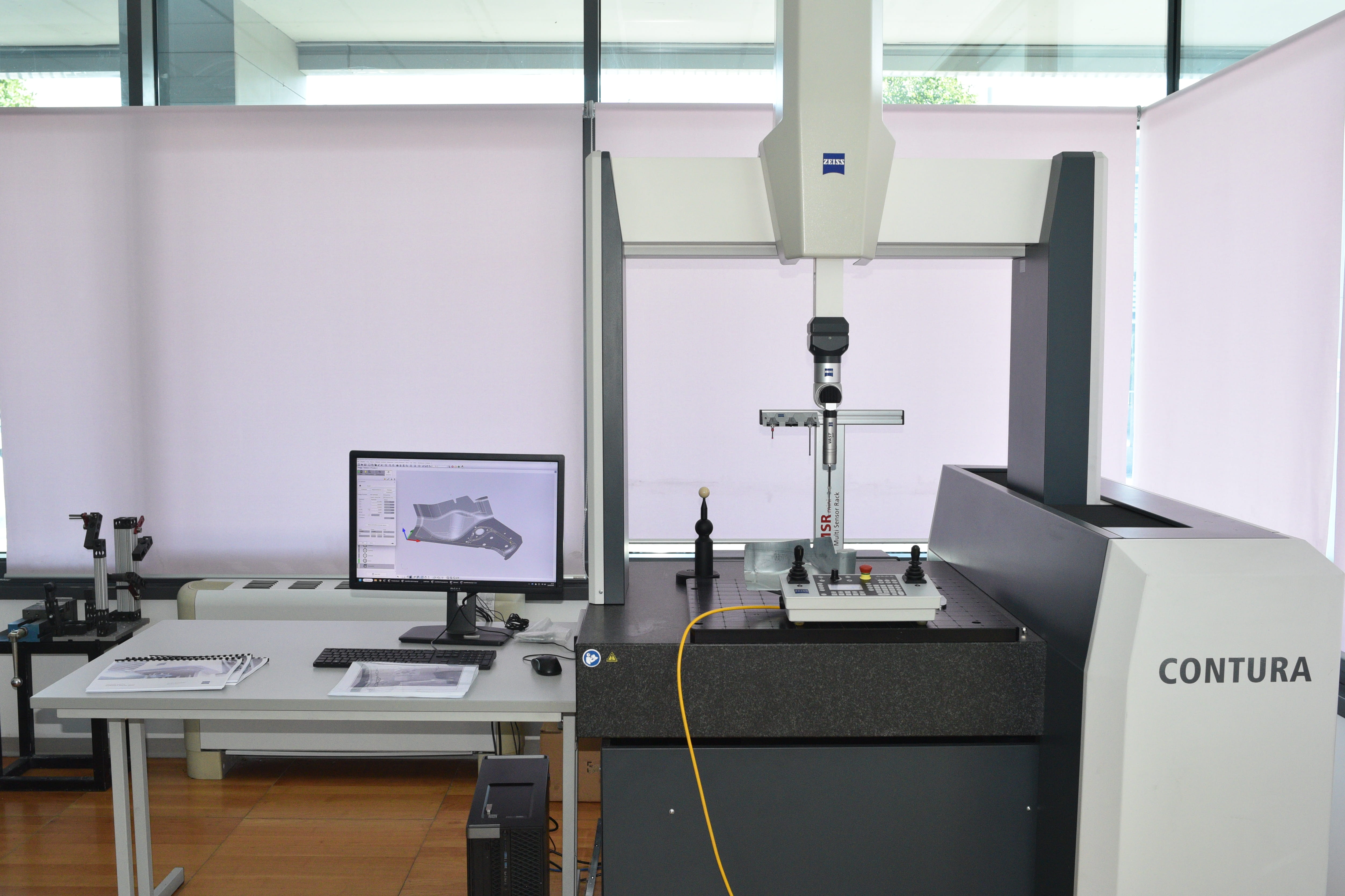

Zeiss Contura
Flexible CMM for dimensional and geometric inspection of components
ZEISS CONTURA is a coordinate measuring machine designed to meet a variety of dimensional inspection needs. The dimensions, geometries, tolerances, and features to be inspected can vary from one application to another, making it important to be able to configure the machine according to the measurement task.
CONTURA can be configured with various ZEISS sensors and probing systems, allowing the measurement methods to be adapted to the characteristics of the component and the inspection requirements. This flexibility makes it possible to perform both contact measurements and the measurement of more complex geometries.
The machine can be used to verify dimensions, diameters, distances, tolerances, shape, position, and orientation of components, providing accurate and repeatable measurement results.
The ability to configure the machine with different technologies and sensors also makes it possible to adapt its capabilities to varying measurement requirements over time, making CONTURA a versatile solution for component and production inspection.
